Commercial Kitchen Ventilation

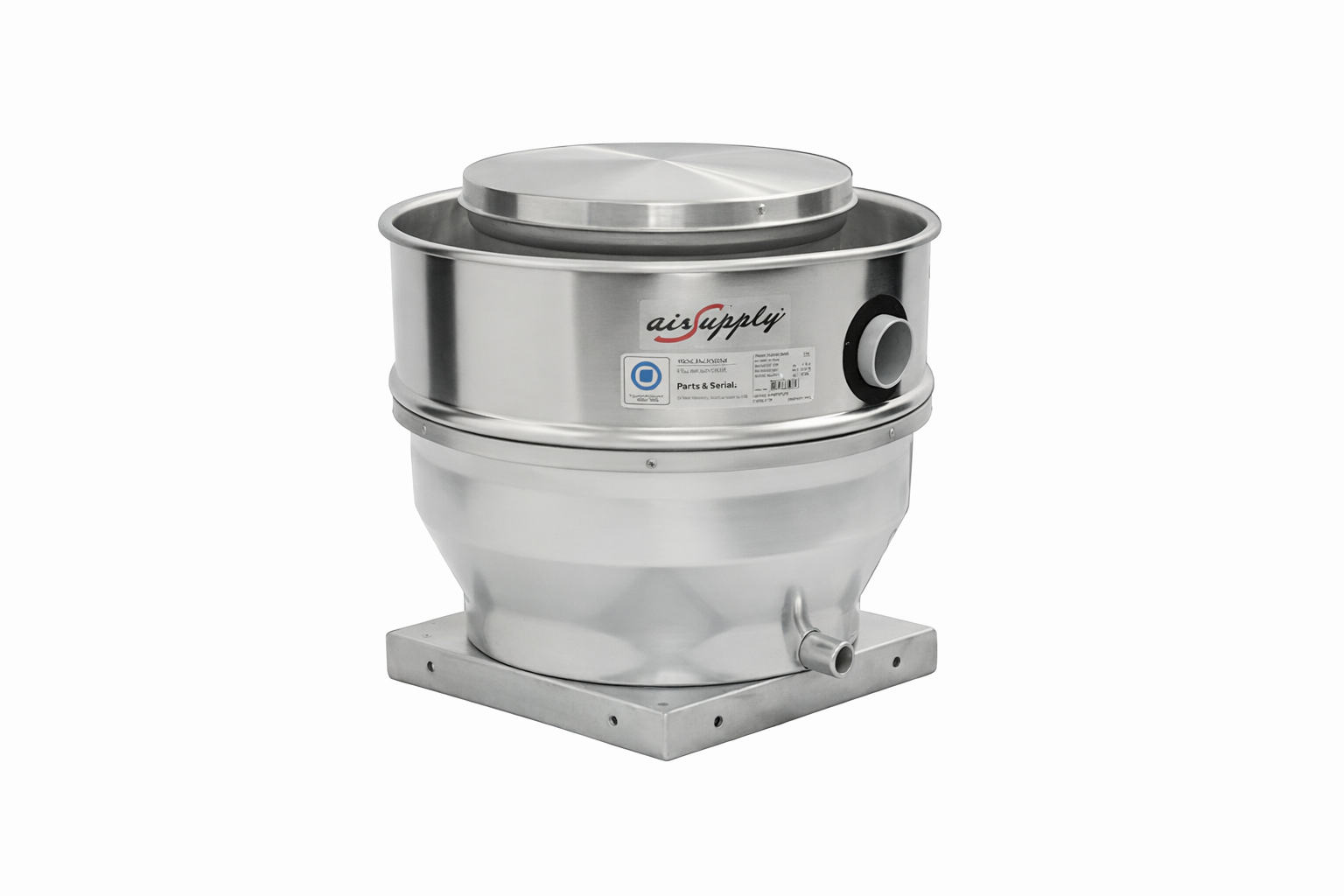

Upblast Exhaust Fans
Direct-drive upblast centrifugal exhaust fans with backward-curved impellers, engineered for grease-laden commercial kitchen applications, with performance configurations spanning 1,600 – 5,400 CFM.
Airflow values shown at rated static pressure for grease exhaust systems.
Applications
Designed for Demanding Kitchen Environments
Supports removal of grease-laden vapors, heat, and smoke in commercial cooking operations including permanent roof- or wall-mounted and mobile installations.
Ideal For
- Full-Service Restaurants
- Quick-Service & Fast Casual Kitchens
- Institutional & School Kitchens
- Hotels & Hospitality Facilities
- Ghost Kitchens & Commissaries
- Catering Facilities
- Food Trucks & Mobile Kitchens
Built for Permanent & Mobile Installations
Consistent vertical discharge and dependable performance in high-grease cooking environments. Designed for contractor-grade installation and service access.
Commercial Facilities
Roof or wall installation for restaurants, institutional foodservice, hospitality kitchens, and commissaries.
Mobile Food Operations
Durable construction suited for food trucks and mobile kitchens operating in demanding conditions.
Mobile kitchen installations: please ensure that either a door or a window is open while the fan is operating. These fans are not designed to operate in a sealed environment — running the fan with both doors and windows closed could lead to the motor overheating.
Models
Available Models
Five performance configurations covering 1,600 – 5,400 CFM for commercial kitchen exhaust applications.
| Model | Rated Airflow | Motor | Voltage | Weight | Specs |
|---|---|---|---|---|---|
| E-DUC08AA18-1 | 1,600 CFM | 1/3 HP | 120V / 1PH | 55 lbs | View Specs |
| E-DUC10AB18-1 | 2,050 CFM | 1/2 HP | 120V / 1PH | 55 lbs | View Specs |
| E-DUC12AC24-1 | 3,000 CFM | 3/4 HP | 120V / 1PH | 61 lbs | View Specs |
| E-DUC12AE25-1 | 3,600 CFM | 1 HP | 120V / 1PH | 61 lbs | View Specs |
| E-DUC15AE28-1 | 5,400 CFM | 1 HP | 120V / 1PH | 74 lbs | View Specs |
Need help selecting a model? Share duct size, estimated CFM, static pressure, voltage, and mounting (roof or wall) details.
Build
Construction & Materials
Galvanized steel and aluminium construction with a direct-drive motor, service-friendly access, and protected electrical components.
Materials
- Housing: Galvanized steel base and motor housing, with Aluminium Grade 1100
- Impeller: Backward-curved centrifugal wheel — galvanized steel with aluminum blades
- Shaft: Hardened and polished steel with sealed ball bearings
- Motor Mounting: Direct drive
Build Features
- Motor: ODP (Open Drip Proof), 1725 RPM, 120V AC / 60 Hz single phase
- Electrical: Waterproof connection area for easier field connections
- Components: UL-listed electrical components
- Drain: Air-tight oil and water drain
- Service: All serviceable parts accessible from one side
- Balance: Quiet and dynamically balanced
Specifications subject to change without notice. Refer to the selected model page for exact configuration details.
